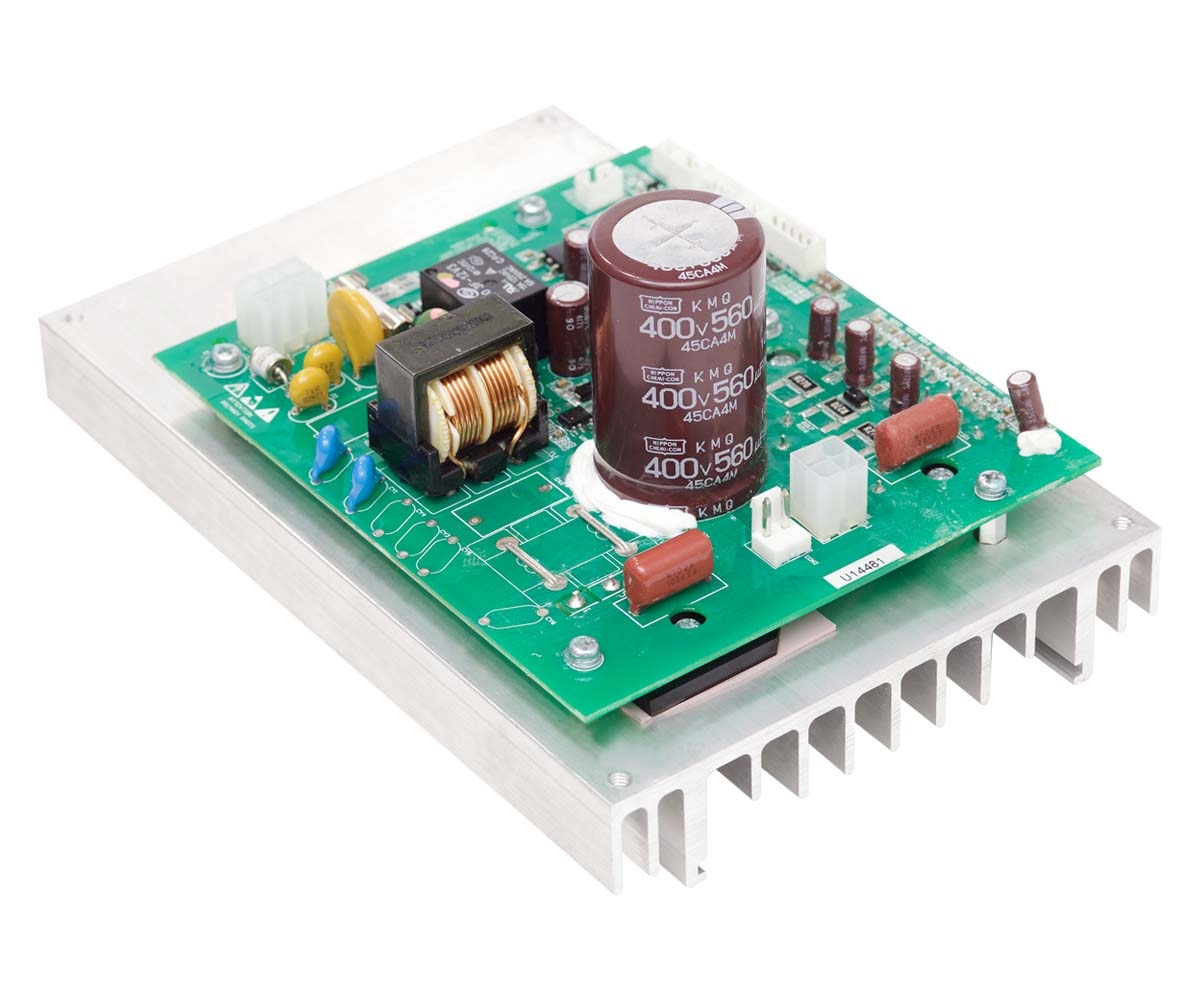

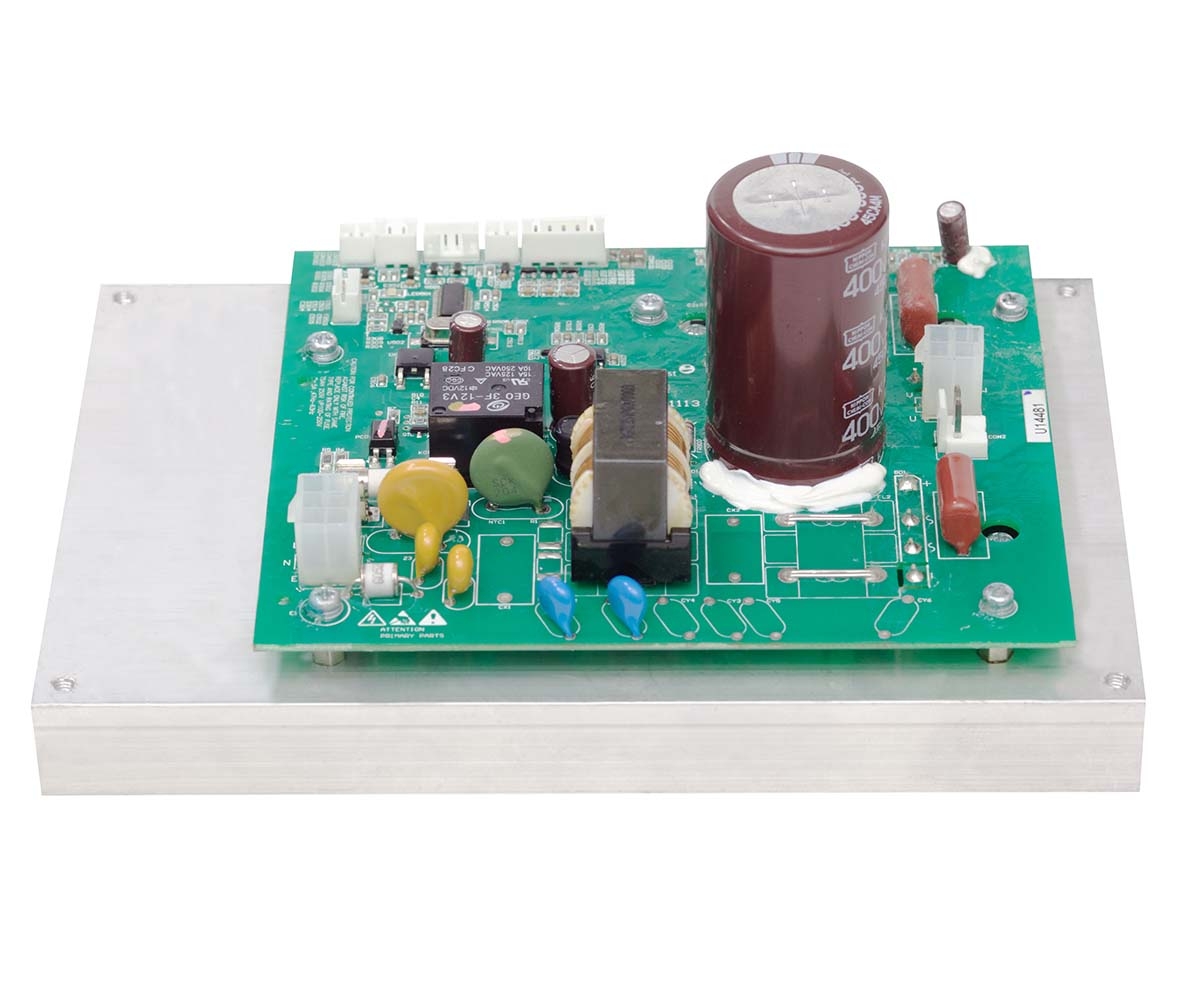

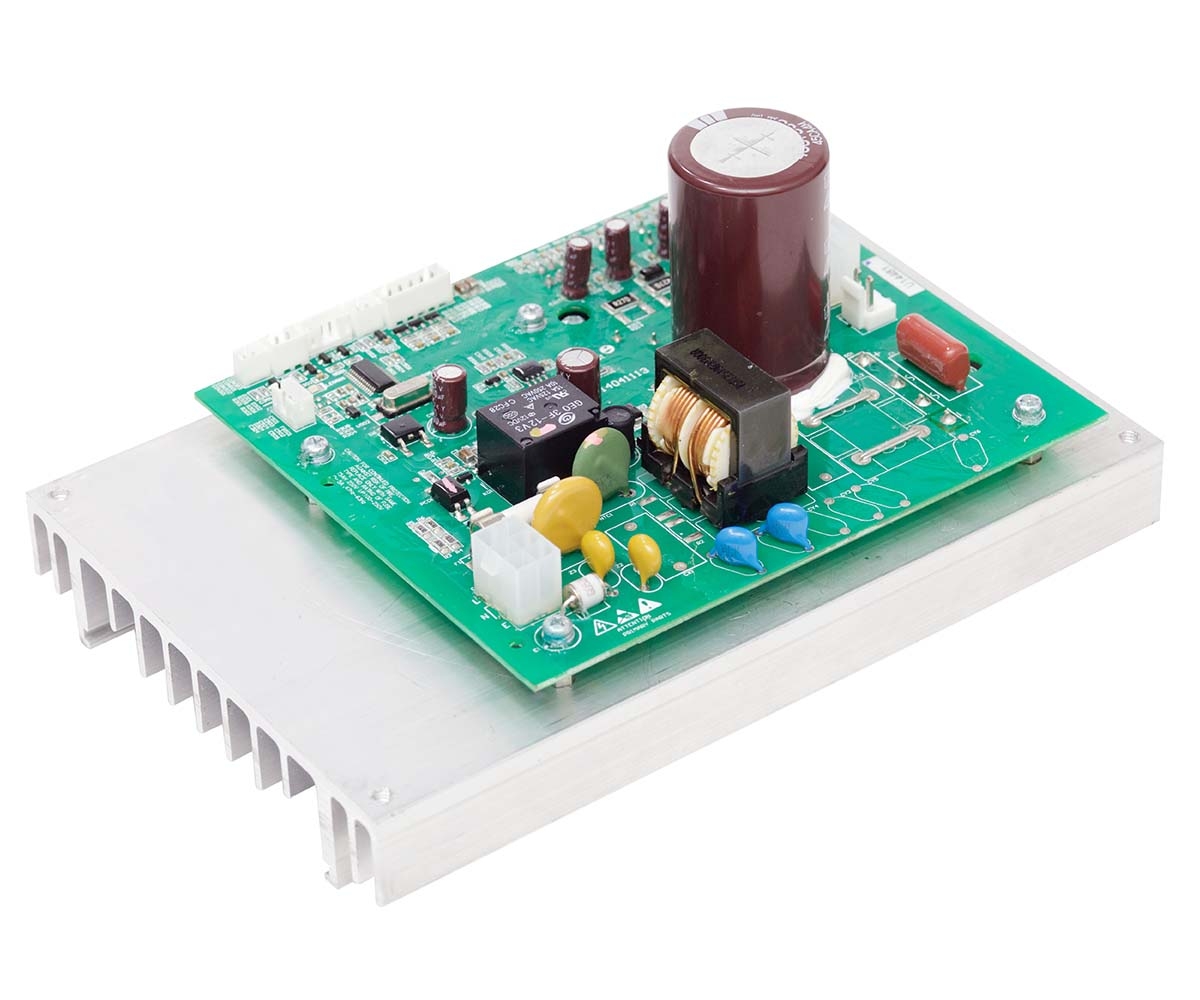

Product Name : Drive Control System-Constant Pressure Pump
Product No : DCA-000A0
Analog Input Pressure (Reserved)
Digital Input Servo On external fault
Digital Output Alarm1 Alarm2
Communication RS485 (HMI) RS485 (Computer)
Protection OC OV LV GF OH
Others HiP/LoP Leakage Detection Excessive water Auto Restart
Application Intelligent Solar Pump
Horsepower(HP) 0.5 1 2
Suitable Motor Capacity(KW) 0.4 0.75 1.5
Rated Output Current(A) 3.1 4.5 7.5
Max. Input Voltage Single Phase: 200~240V +10% -15%,50/60HZ ± 5%
Max. Output Three Phases: 0~240V
Voltage  8.5 12 16
